Hybrid Tables

​

Overview

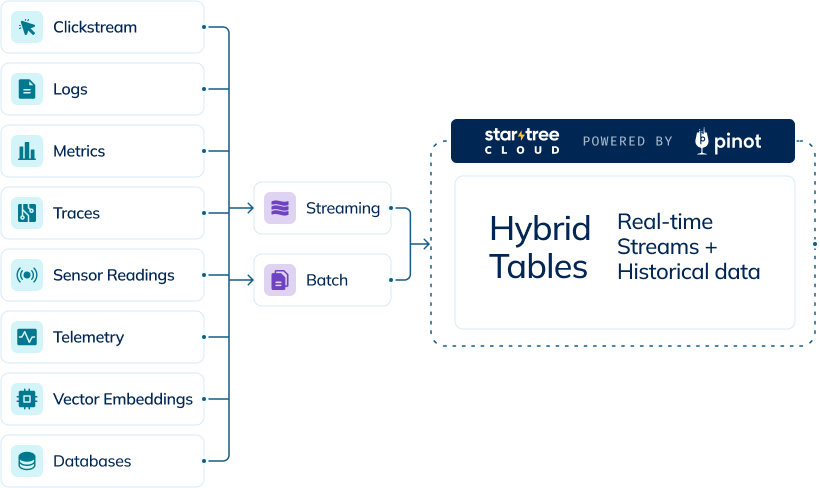

Hybrid tables in StarTree Cloud combine the benefits of both real-time and offline ingestion in a single logical table. This powerful configuration allows you to query across both streaming and batch data seamlessly, without having to specify which data source you’re accessing.

​

How Hybrid Tables Work

A hybrid table consists of two physical tables that share the same name:

• A real-time table ingesting data from streaming sources (e.g., Kafka)
• An offline table containing historical data loaded from batch sources

The query broker intelligently routes queries to the appropriate segments based on time boundaries, providing a unified view of your data. When an offline segment is pushed to cover a time period that overlaps with real-time data, the broker automatically prioritizes the offline segments for that period.

​

Key Benefits

• Complete Data View: Access both real-time and historical data through a single table
• Optimized Storage: Keep long-term historical data in offline segments while maintaining a shorter retention for real-time data
• Data Correction: Replace real-time data with corrected/deduplicated offline data as it becomes available
• Seamless Querying: Users query a single table without needing to understand the underlying table types

​

Common Use Cases

• Daily ETL processes that push cleaned, deduplicated data to offline segments while continuously ingesting real-time data
• Maintaining years of historical data in offline segments while keeping only recent data in real-time segments
• Providing immediate visibility into streaming data while ensuring consistency with batch-processed data

​

Configuration

Hybrid tables must be configured using Controller APIs. A typical configuration involves:

1. Creating both real-time and offline table configurations
2. Setting appropriate retention periods for each (longer for offline, shorter for real-time)
3. Configuring time boundaries to manage query routing

​

Managed Offline Flow

StarTree Cloud offers a “Managed Offline Flow” that can automatically move data from real-time to offline segments:

"task": {
  "taskTypeConfigsMap": {
    "RealtimeToOfflineSegmentsTask": {
      "bucketTimePeriod": "1h",
      "bufferTimePeriod": "1h",
      "schedule": "0 * * * * ?"
    }
  }
}

This task runs periodically to create offline segments from real-time data, simplifying the maintenance of hybrid tables.
