Access Control in ThirdEye

Access to alerts, anomalies, and other resources in ThirdEye can be restricted to particular users and groups of users. This document explains how authorization works in ThirdEye and how to write your own authorization policies for ThirdEye resources. For a specific use-case, see our RBAC recipe.

Writing authorization policies

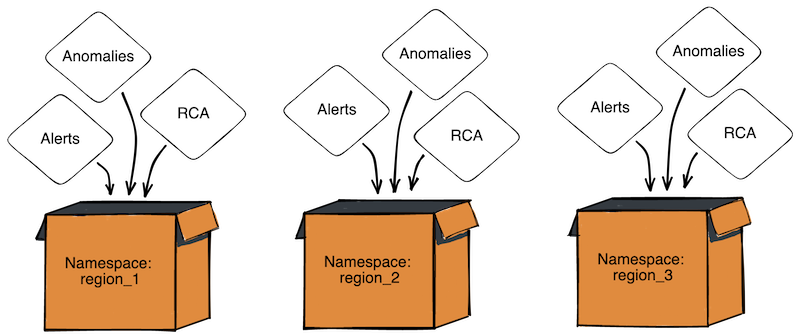

ThirdEye talks to a separate authorization service to determine if a user can access a particular resource. The authorization service matches users and resources to authorization policies in order to make that determination. In most cases, ThirdEye resources can be organized into namespaces. Access control policies are applied to all resources in a particular namespace.

You can create and manage authorization policies and view the authorization server’s API documentation at https://MY_ENV.MY_ORG.startree.cloud/auth/swagger-ui/index.html. Authorization policies have 4 important fields:

policyType - This can be either ALLOW or DENY.
namespaceSrn - The namespace that this policy applies to.
priority - Policies are sorted in ascending order by priority. Smaller numbers take priority over higher numbers.
rule - The rule to match resources and users for this policy. This is where most of the action happens.

Example policies:

{
  "policyType": "ALLOW",
  "namespaceSrn": "srn:zone:namespace:default:europe",
  "priority": 1,
  "rule": "action='read'",
  "description": "Allow anyone to read resources in the europe namespace."
}

{
  "policyType": "ALLOW",
  "namespaceSrn": "srn:zone:namespace:default:europe",
  "priority": 1,
  "rule": "action='write' and subject_user_groups CONTAIN 'Europe'",
  "description": "Allow anyone in the Europe group to write resources in the europe namespace."
}

StarTree resource names

The StarTree resource names (SRNs), are used to identify who may have access to what. The SRNs contain three relevant fields: resource type, namespace, and resource id. Field values are colon-separated and must match the regex ^[a-z0-9-_]+$. Example SRN for an Alert:

  srn:zone  :   thirdeye-alert   :    default    :    15213
      ^               ^                  ^              ^
  Start SRN     Resource Type        Namespace      Resource ID

Namespaces

If a resource is not assigned to a namespace, then the namespace is default. You can set the resource’s namespace by adding "auth": {"namespace": "my-namespace"} to the resource’s configuration. Anomalies are automatically assigned to the namespace of the alert or enumeration item that created it. Investigations are automatically assigned to the namespace of the anomaly it’s related to. Example Alert:

{
  "name": "Views-Threshold-DE",
  "template": {
    "name": "startree-threshold"
  },
  "auth": {
    "namespace": "alerts-de"
  },
  ...additional
  configuration
}

SRN’s for ThirdEye resources

Thirdeye Resource	SRN Resource Type	Example SRN
Data Source	thirdeye-data_source	srn:zone:thirdeye-data_source:default:105
Dataset	thirdeye-dataset	srn:zone:thirdeye-dataset:default:114
Alert Template	thirdeye-alert_template	srn:zone:thirdeye-alert_template:default:103
Alert	thirdeye-alert	srn:zone:thirdeye-alert:default:140
Enumeration Item	thirdeye-enumeration_time	srn:zone:thirdeye-enumeration_item:1776
Anomaly	thirdeye-anomaly	srn:zone:thirdeye-anomaly:default:1252
RCA Investigation	thirdeye-rca_investigation	srn:zone:thirdeye-rca_investigation:1343

Policy matching

When ThirdEye checks authorization, 3 pieces of information are sent to the authorization service:

Resource SRN
User SRN
Action

Policy filtering

First, the auth service searches for all policies in the resource’s namespace and the default namespace. The policies are sorted by ascending priority. Policies in the default namespace are ordered first, followed by policies in the resource’s namespace. For example, if the auth service is checking authorization for resource SRN srn:zone:thirdeye-alert:regional_analysts_uk:140, the policies are ordered like this:

[
  {
    "priority": 1,
    "namespaceSrn": "srn:zone:namespace:default:default",
    "rule": "..."
  },
  {
    "priority": 100,
    "namespaceSrn": "srn:zone:namespace:default:default",
    "rule": "..."
  },
  {
    "priority": 1,
    "namespaceSrn": "srn:zone:namespace:regional_analysts_uk:default",
    "rule": "..."
  },
  {
    "priority": 100,
    "namespaceSrn": "srn:zone:namespace:regional_analysts_uk:default",
    "rule": "..."
  }
]

Attribute context

Next, the auth service creates a context map of attributes used in the policy rules. The auth service maps the User SRN to the attributes sent by the OIDC provider when the user logged into StarTree cloud. The auth service puts the user attributes, all the fields of the user SRN and resource SRN, and the action into the context map. Example context map:

{
  "action": "read",
  "resource_namespace_srn": "srn:zone:namespace:default:default",
  "resource_namespace_srn_entity": "namespace",
  "resource_namespace_srn_identity": "default",
  "resource_namespace_srn_namespace": "default",
  "resource_srn": "srn:zone:dataset:default:pageviews",
  "resource_srn_entity": "dataset",
  "resource_srn_identity": "pageviews",
  "resource_srn_namespace": "default",
  "subject_namespace_srn": "srn:zone:namespace:default:default",
  "subject_namespace_srn_entity": "namespace",
  "subject_namespace_srn_identity": "default",
  "subject_namespace_srn_namespace": "default",
  "subject_srn": "srn:zone:user:default:system",
  "subject_srn_entity": "user",
  "subject_srn_identity": "system",
  "subject_srn_namespace": "default",
  "subject_user_email": "jackson@startree.ai",
  "subject_user_groups": [
    "my-okta-group"
  ],
  "subject_user_name": "jackson@startree.ai"
}

Rule matching

Finally, the policy rules are executed within the context. The policy rules use a SQL-like syntax where the columns are the context fields and the values are the context values. The first matching policy is applied. Example rule matching the above context:

action='read' AND subject_user_groups CONTAINS 'my-okta-group'

Namespaces for ThirdEye resources

Most ThirdEye resources allow you to set the namespace in the resource’s configuration, but in some cases the namespace is inherited from a parent resource. Example alert:

{
  "name": "MyAlert",
  "prop1": "val1...",
  "auth": {
    "namespace": "my-namespace"
  }
}

This table shows how each resource gets its namespace:

Resource	How is the namespace configured?
Data source	Namespace can only be set through the API.
Dataset	Namespace can only be set through the API.
Alert Template	Namespace is set in the UI by editing the config.
Alert	Namespace is set in the UI by editing the config.
Enumeration Item	Namespace is set in the Alert’s config block that creates the enumeration item.
Anomaly	Namespace comes from the Alert or Enumeration Item that created it. If the anomaly was created by an enumeration item without an auth config, then the anomaly is assigned to the Alert’s namespace. Namespace can be overridden through the API.
RCA Investigation	When created in the UI or without an auth config, the namespace is assigned to the Anomaly’s namespace. Namespace can be overridden through the API.
Other resources	Always in the default namespace.

In all cases:

If there is no namespace, then the namespace is default.
You can check the namespace of a resource by GETing the resource.

{
  "id": "12345",
  "prop1": "val1...",
  "auth": {
    "namespace": "my-namespace"
  }
}

Policy enforcement in ThirdEye

How does Thirdeye respond when someone doesn’t have access?

Unauthenticated requests

If a user makes any unauthenticated request, ThirdEye responds with status 401 Unauthorized.

Requests for a single entity

If a user requests a single entity but does not have access to that entity, ThirdEye responds with status 403 Forbidden.

How does ThirdEye respond to `get all` requests?

If a user requests a list of resources, such as all alerts, ThirdEye only returns the alerts that the user can access. If the user cannot access any alert, then an empty list is returned.

Specific permissions required for each API request

Request	Policy action	Notes
All Resources
`GET /api/{resource}`	read	Only returns the resources that the user can read.
`GET /api/{resource}/{id}`	read
`GET /api/{resource}/name/{name}`	read
`POST /api/{resource}`	write	Resource ID is always 0 when checking write permission for new resources.
`PUT /api/{resource}`	write	The user must have write access for the resource’s current state and the new state.
`DELETE /api/{resource}/{id}`	write
Alerts
`POST /api/alerts/evaluate` (existing alert)	read	If the request body contains an alert id, ThirdEye evaluates the alert as it is stored in the database.
`POST /api/alerts/evaluate` (new alert)	write	If the request body does not contain an alert id, ThirdEye evaluates the alert in the request body.
`POST /api/alerts/validate`	write
`POST /api/alerts/{id}/reset`	write
Anomalies
`POST /api/anomalies/{id}/feedback`	write
